8 Degree Pedal
X8-2 Series Floating Pedal – Large Platform (108mm x 111mm)
INTERNATIONAL ORDERS PRICES SHOWN EXCLUDE VAT AND IMPORT DUTIES IF APPLICABLE.
Shipping available immediately for all colors
Description
Built for riders who make the switch — and don’t look back.
The world’s first flat pedal with 8° of self-centering float for improved knee alignment, comfort, and control.
The 8 Degree X8-2 Series Floating Pedal is our large-platform model, designed to deliver a more natural, comfortable pedaling experience for riders who demand both performance and joint-friendly ergonomics. By allowing controlled rotational float, the X8-2 helps your feet move naturally through each pedal stroke — reducing knee strain, improving comfort, and enhancing overall control.
With its compact bearing housing and lower Q-factor, the X8-2 sits closer to the crank for a more efficient, stable ride feel. Factory-installed Super-Grip pins provide excellent traction, while the reversible pin design lets you customize grip height to match your riding style.
Advanced 8° Floating System
Experience smoother, more natural pedal strokes as the self-centering internal mechanism maintains proper biomechanical alignment of the foot, ankle, and knee — improving comfort and power transfer on every ride.
Platform Size
Large: 108mm W x 111mm L (4.40" x 4.37")
Key Features
-
Lower Q-factor for improved efficiency and bike control
-
Compact bearing housing keeps pedals closer to the crank
-
Reversible Super-Grip pins for adjustable traction
-
Three spring resistance options for customized float feel
-

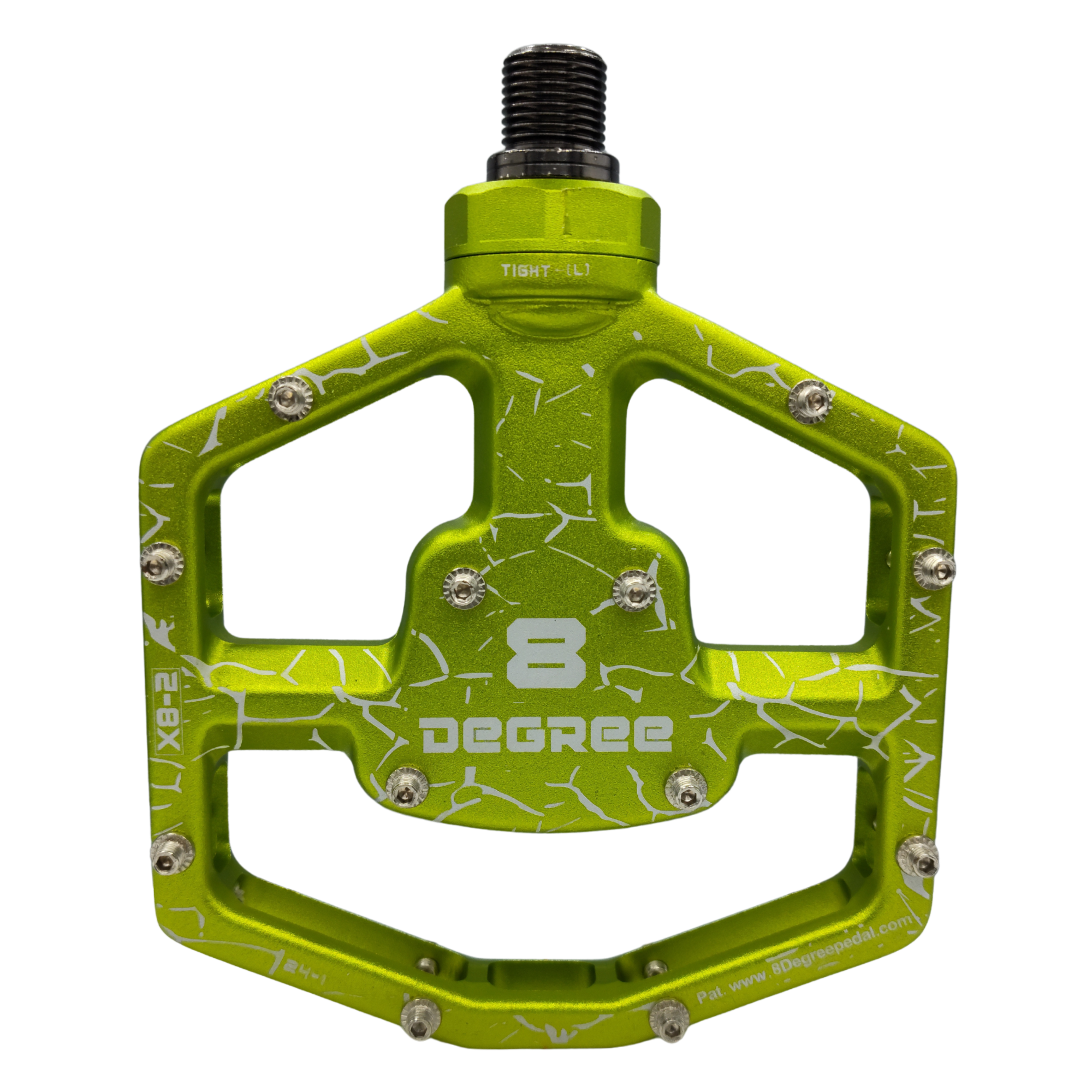

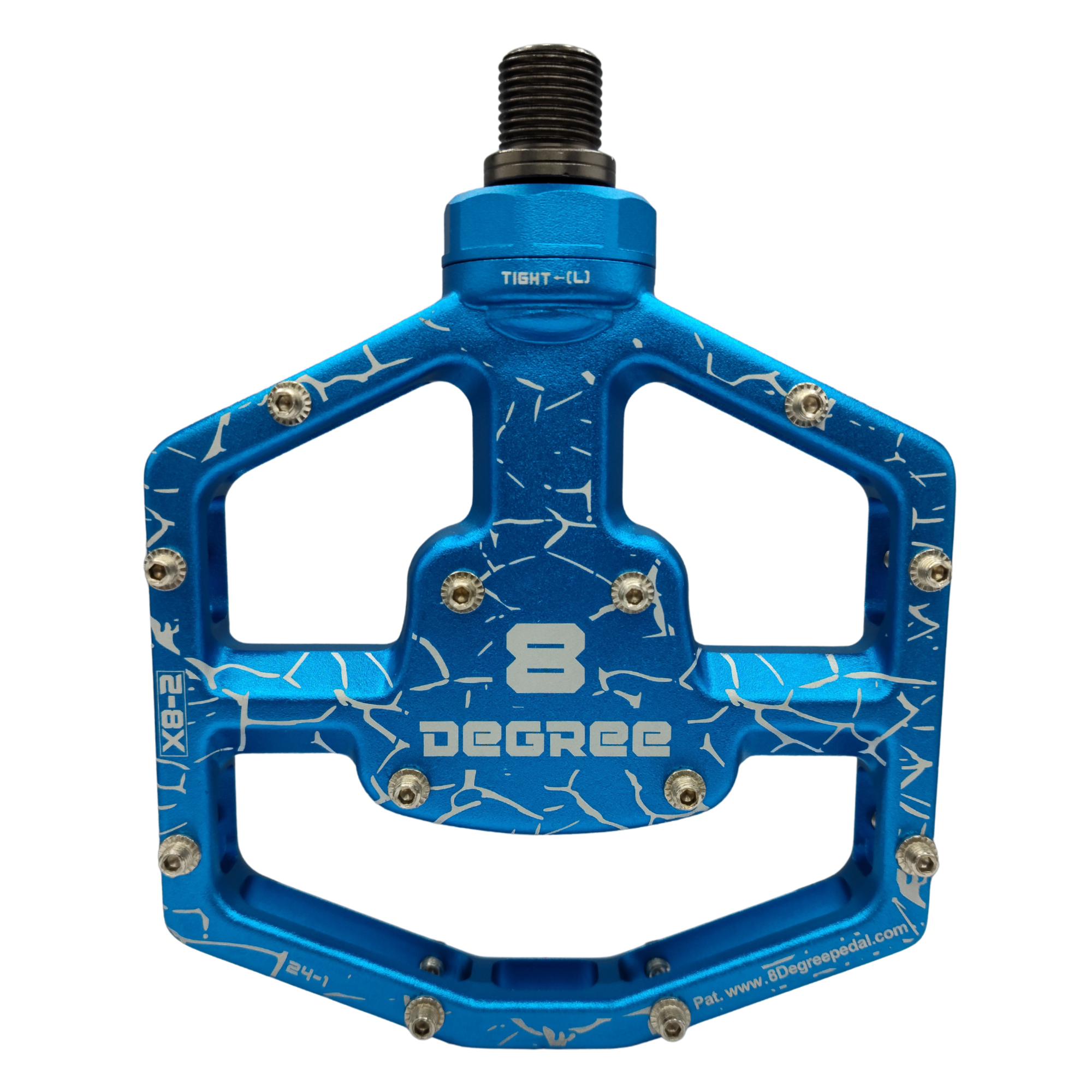

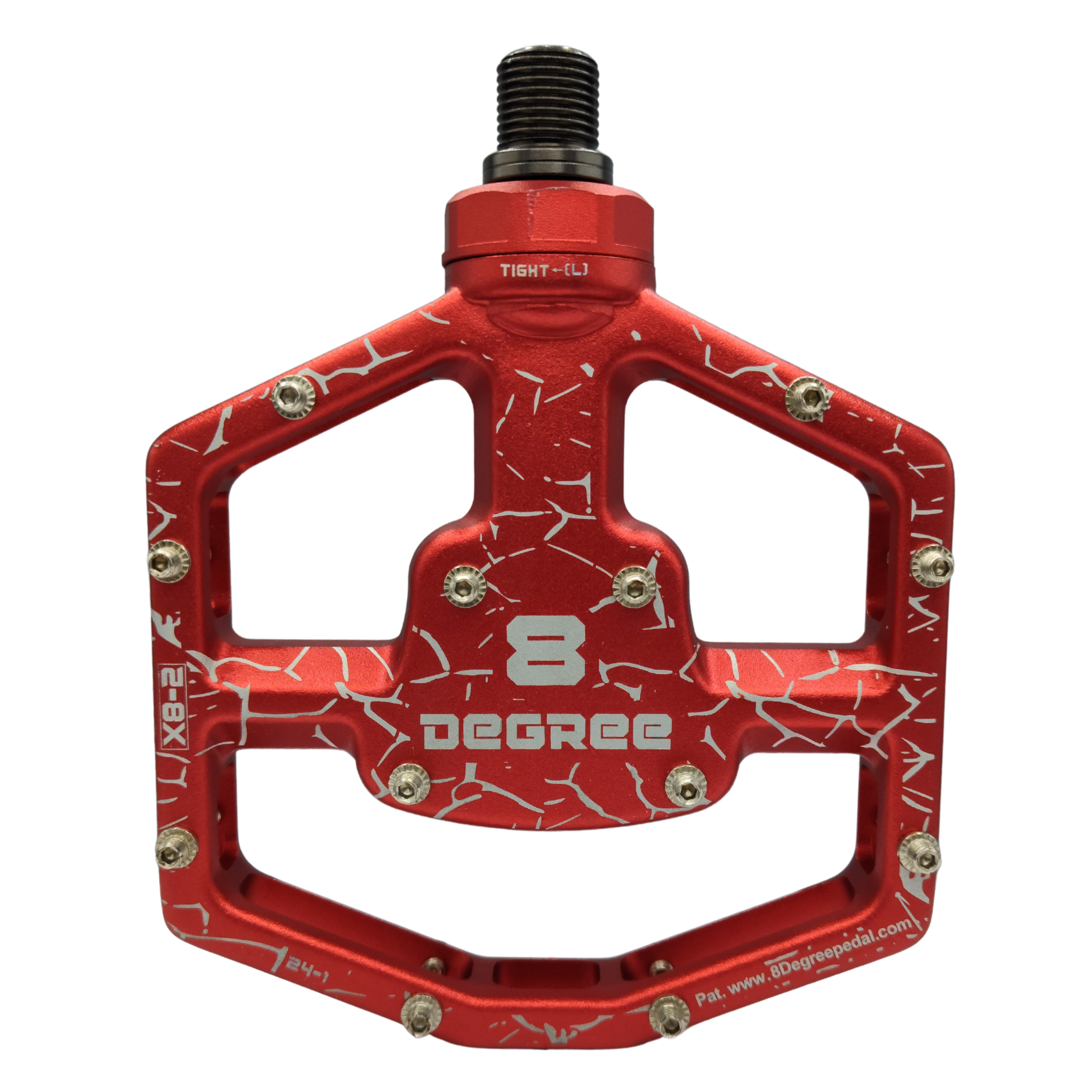

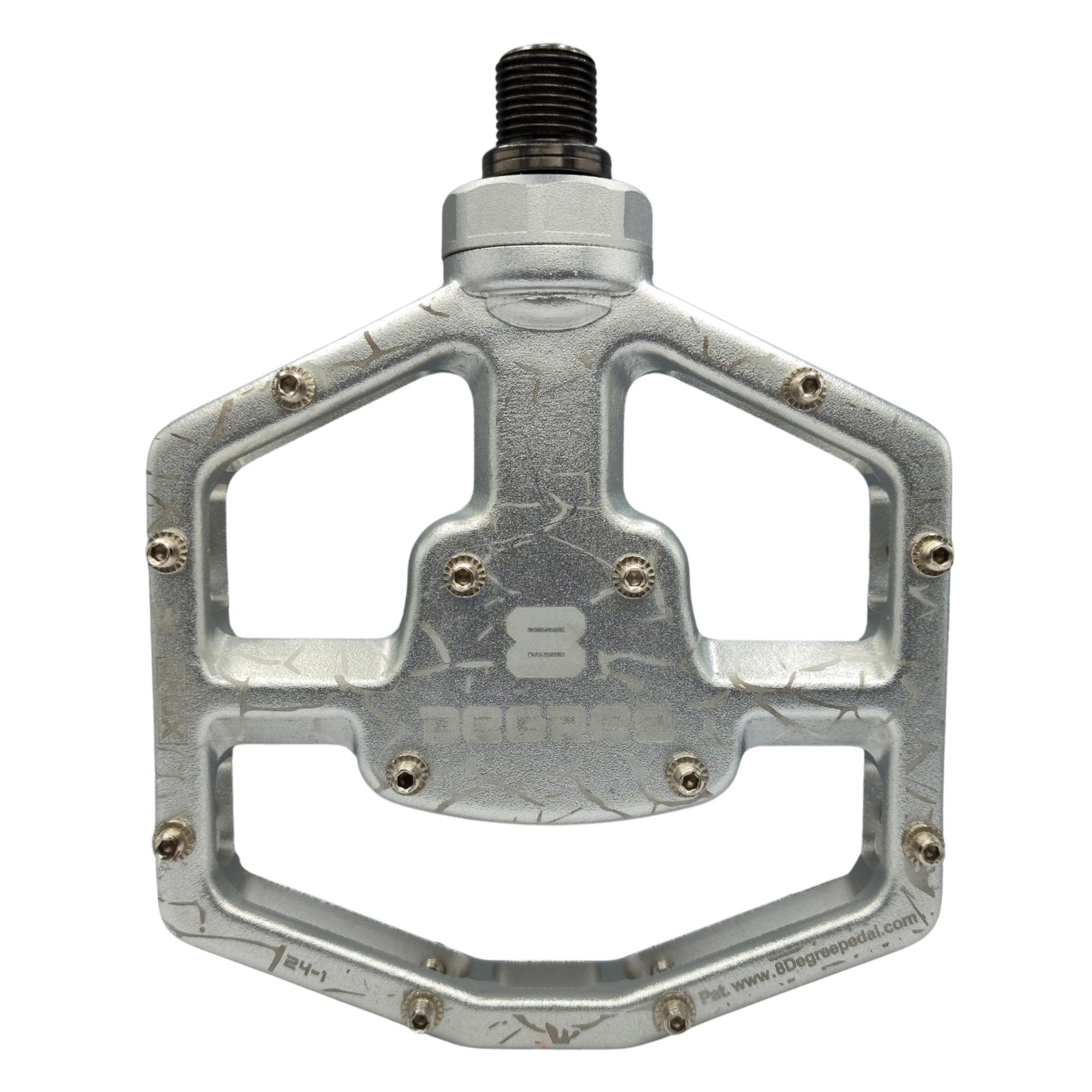

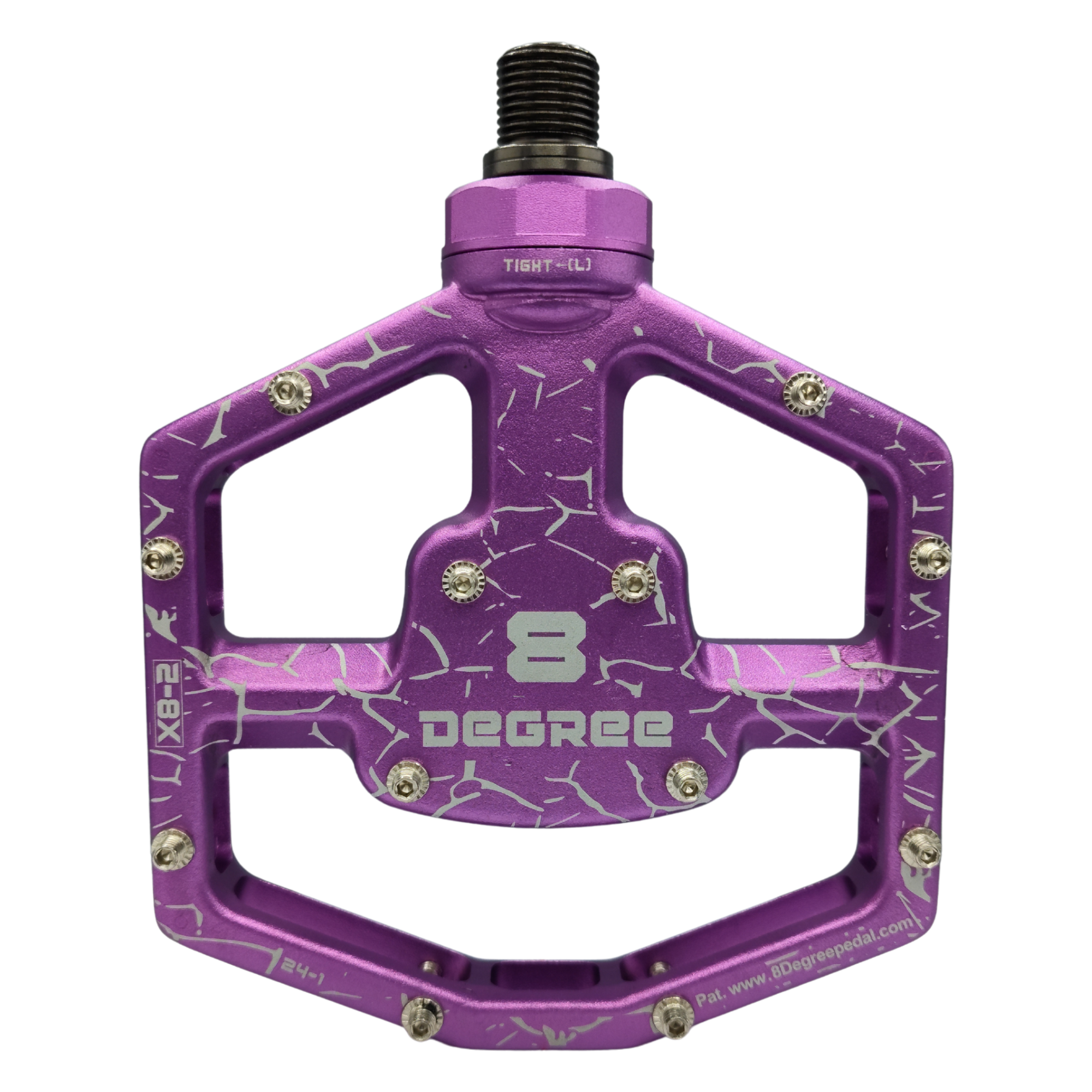

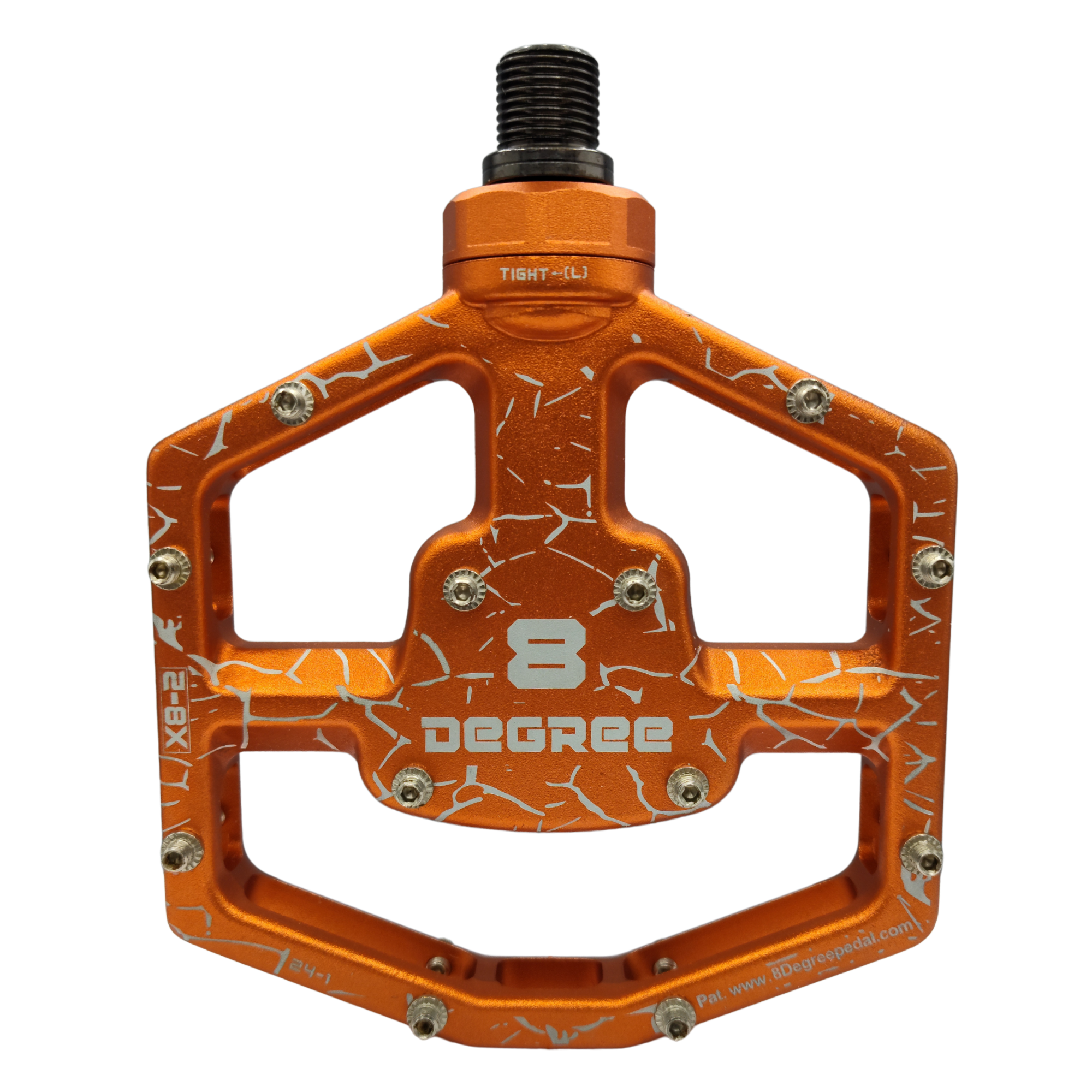

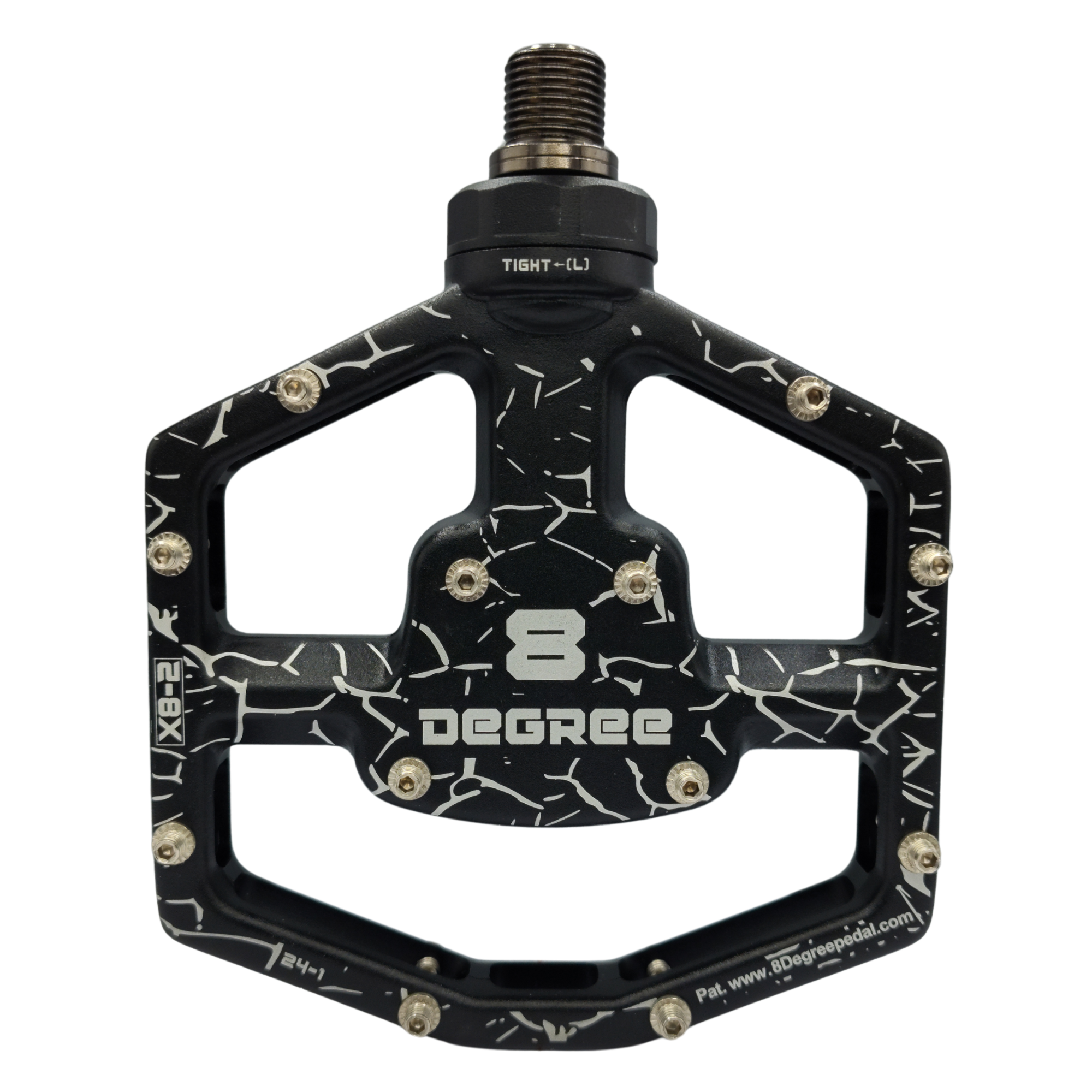

Available in multiple colors: Black, Red, Blue, Green, Orange, Purple, Brown, and Silver
What’s Included
-
Left & right pedals (9/16-20 standard thread)
-
Alternate less-aggressive grip pins + pin wrench
-
Allen wrench for grip pins
-
6mm Allen wrench for pedal installation & spring plug removal
-
Spring sets:
-
20 lb (Red)
-
30 lb (Blue – factory installed)
-
40 lb (Green)
-
Compatibility
Designed to fit most bicycles for easy installation and a seamless riding experience.
Built to Last
Engineered for durability and performance, the X8-2 exceeds international safety standards (ISO 4210-8) and passes over 1 million cycle factory stress tests.
PRESS & REVIEWS
Independent reviews, video coverage, and awards mentions.
Specs
| Specification | Description |
|---|---|
| Body Material | 6061-T6 Aluminum |
| Body Dims (L x W) | 112mm X 111mm |
| Inner Bearing Type | Sleeve Bearing |
| Outer Bearing Type | Spherical Bearing, Teflon Coated plus Sleeve Bearing |
| Endcap | Hex alloy |
| Spindle Material | Chromium Hardened Steel |
| Weight | 554g per pair |
Return Policy
View our 30-Day Return here
Understand the Revolution: How the 8 Degree Floating Pedal Transforms Cycling
Experience the transformative power of the 8 Degree Floating Pedal in this captivating video, where every turn and trail speaks to the heart of cycling innovation.
8 Degree Floating Clipless Pedals: A Breakthrough Technology in Improving Cycling Comfort and Efficiency
Enhanced Comfort and Efficiency
The 8 Degree Floating Bike Pedals feature an innovative design that incorporates an 8 degree float, allowing for a comfortable and natural foot movement during the pedal stroke. This reduces strain on joints, minimizes pressure points, and optimizes pedal efficiency. Cyclists experience a smoother ride, enhanced comfort, and improved power transfer, making long rides more enjoyable.
The 8 Degree Pedal Explained
As the first ever flat floating pedal, our multi-patented 8 degree pedal boasts a unique design, offering unparalleled alignment of the knee, foot, and ankle for a ride that feels effortlessly natural. Pedal float in cycling has been proven to have more comfort and better power transfer, and to reduce irritation and possible injury to your knees.
Our pedals have been designed to be self-centering with an internal spring-loaded mechanism that also provides self-compensation for foot float on the pedal. This mechanism also helps to counteract excessive floating.
Our pedals have been engineered internally to be extremely durable and low maintenance. Rigorous field tests by avid cyclists have been performed as well as strenuous lab testing on the pedal with a weighted load, ran at 60 RPM in conjunction with 60 back-and-forth 8 degree cycles per minute for a 1,036,800 cycle test. On top of that, the pedal has met and exceeded test requirements for the International Safety Standards test 4210-8.
Current production models reflect iterative refinements made since early prototypes.
SPRINGS
Our springs are designed for maximum life in this configuration and show zero fatigue from the 1,036,800 cycle tests. The springs installed in the pedal from the factory are blue medium tension springs catered to most riders. We are also providing an extra set of light resistance springs for lighter or less aggressive riders and heavy resistance springs for heavier or more aggressive riders. These additional springs can be easily changed by the customer with a metric Allen wrench.
SLIDING PUCK
This puck is the key to our design; It is one of the hardest and lowest anti-friction co-efficient components available. It also has shown little to no wear in the 1,036,800 cycle test under load. The puck slides back and forth in between 2 thin but strong stainless plates at the top and bottom of the puck without lubrication on the surfaces as designed. The puck surfaces and stainless plate surfaces become polished from the sliding puck movement.
SPRING PLUNGERS
The internal mechanism works with 2 opposing spring- loaded plungers that slide in and out of opposing plunger bores while applying pressure against the curved lobes on a sliding puck. These spring-loaded plungers apply an increasing load resistance as the float increases from (0) degrees center-position to +/- (4) degrees in each direction which is key in the self-compensating float design. These plungers have shown little to no wear in 1,036,800 cycle tests. Minor lubrication is required.
SPHERICAL BEARING
Our custom-made, Teflon coated bearing has shown little to no wear in 1,036,800 cycle tests. Minor lubrication is recommended.
2 SLEEVE AXLE BEARINGS
Our pedal has been matched with the best, lowest friction plastic sleeve bearings designed with longevity in mind. These same bearings are found within the highest quality cycling pedals on the market. Lubrication is not required.
SEALS
Our pedal has 4 seals to help prevent dirt and moisture from entering the internal mechanism. 1 plate seal, 2 o-ring seals, and 1 shaft seal. These seals are extremely effective, however like any other pedal, depending on the riding conditions and time spent on the pedals, more frequent maintenance may be advised.
Versatile Adaptability Across Disciplines
These pedals offer versatile adaptability, making them suitable for various cycling disciplines such as road biking, mountain biking, and indoor workouts. With an adjustable float range from -4 degrees to +4 degrees, cyclists can fine-tune the pedals to match the specific demands of their chosen discipline. This adaptability ensures that riders can use the same pedals across different bikes and activities, adding convenience and flexibility to their cycling experience.
FAQ
Explore 8 Degree Pedal's premium cycling pedals. Enjoy the self-centering, flat floating, and truly clipless pedals for a better ride!
What's special about 8 Degree Floating pedals?
Our revolutionary, breakthrough technology pedals are the first ever flat floating pedals that Provides self-float compensation by using internal spring-loaded mechanism with self-centering design.
This float system is designed to help maintain normal foot, knee and ankle alignment that is known for reduce Knee strain and improves efficiency and comfort while pedaling.
Why is pedal float important?
By maintaining natural alignment, it reduces strain on joints, minimizes discomfort and promotes a natural pedal stroke.
What pedal types do you provide?
Our range to date includes flat pedal for mountain bike pedals. However, this model also works on all other bikes and riding styles.
More models are currently in design process.
Do I need special shoes for 8 Degree Floating pedals?
No, they work best with standard flat rubber sole cycling shoes
What about recumbent bikes, will these work for that too?
Yes, our pedals provide the same benefits to those with specialty, non-traditional bikes.
How fast do you deliver the orders?
Orders are typically processed and shipped within 2-5 business days.
Are your pedals suitable for various cycling disciplines?
Yes, they're versatile and fit for road biking, mountain biking, Cruisers, and more.
How do 8 degree Floating pedals reduce injury risk?
They allow natural foot movement, reducing the impact of rigid pedal stroke positions.
Any maintenance tips for 8 degree Floating pedals?
Regular cleaning and, for some models, lubrication. Refer to the manual for specifics.
WILL THE PEDALS HAVE A SHORT LIFE AND WARE OUT SOON DO TO ALL THE MOVING PARTS
Our pedals have been engineered and designed internally to be extremely durable and require minimal maintenance.
- Springs: Our springs are designed to endure a minimum of 1 million cycles; however, this is a conservative estimate.
- Spring Plungers: Testing has shown little to no wear after 1 million cycles.
- Sliding Puck: This puck is key to our design; it is made from one of the hardest and most anti-friction materials available. It has also shown little to no wear in 1 million cycle tests under heavy load. The puck slides back and forth between two thin, hard stainless plates without lubrication, as designed.
- Spherical Bearing: Our custom Teflon-coated bearing has exhibited little to no wear in 1 million cycle tests.
- Sleeve Axle Bearings: The pedals are equipped with high-quality, low-friction plastic sleeve bearings designed for longevity. These same bearings are found in many other top-quality pedals on the market.
- Seals: Our pedals feature four seals to help prevent dirt and moisture from entering the internal mechanism: one plate seal, two O-ring seals for the spring plungers, and one shaft seal. While these seals are extremely effective, it’s important to note that, depending on riding conditions and usage, more frequent maintenance may be advised.
